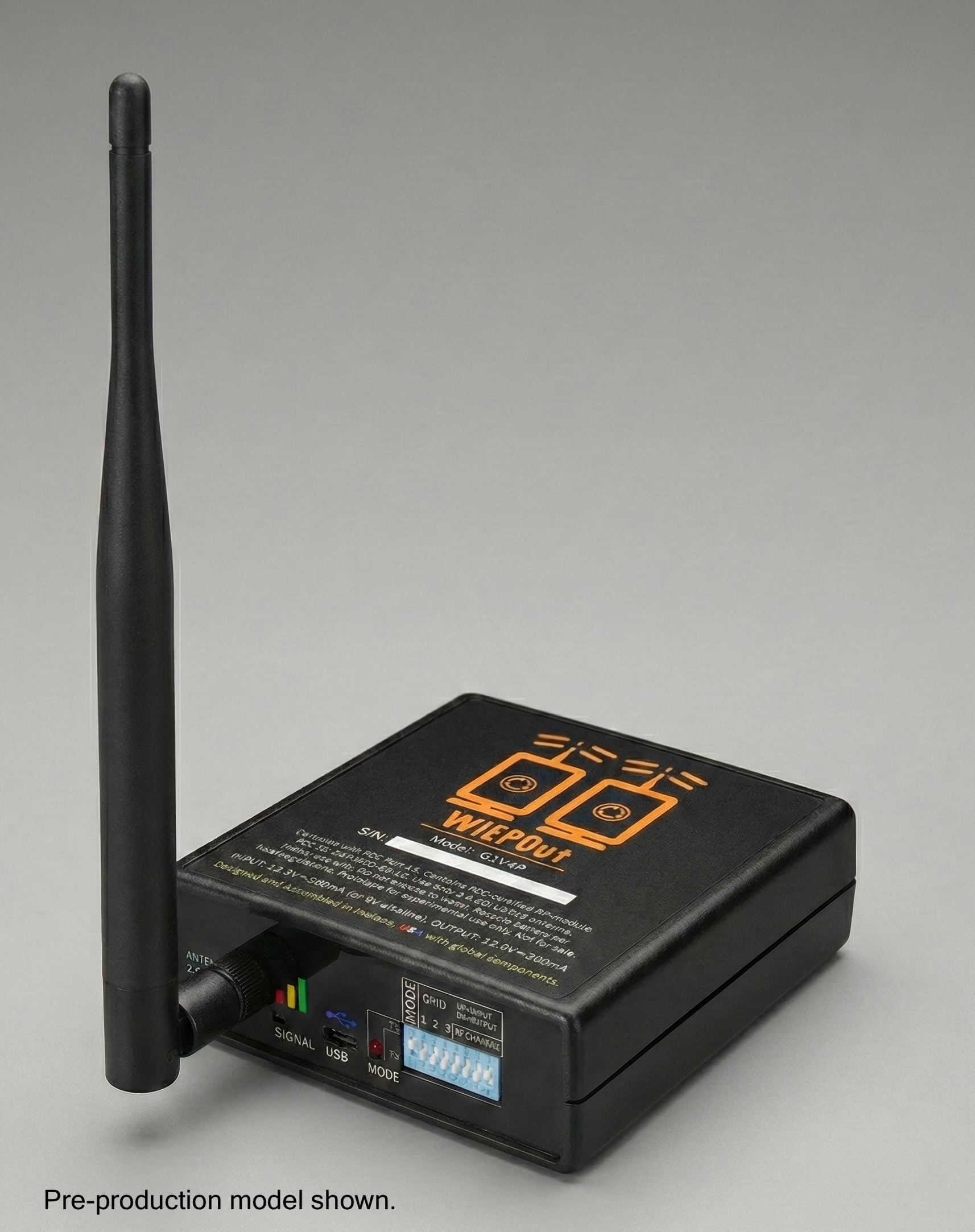

WiEPOut T1
WiEPOut T1 replaces up to 5x wired signal paths with a point-to-point, encrypted wireless link. It operates without any facility infrastructure and has no dependency on Wi-Fi or Bluetooth. By operating in the 915 MHz band, it reaches farther and resists interference better than higher frequency 2.4 GHz solutions.
Key Features
- 915 MHz signal for superior range and reliability vs Wi-Fi and Bluetooth
- AES-256 encrypted communication
- Solid-state switching design
- Internal 9V lithium primary backup keeps the link alive during power outages
- PLL-synchronized timing for reliable TDMA communication
- VISA/SCPI integration for test automation
Features
915 MHz Wireless
Better wall penetration and range than 2.4 GHz alternatives. Operates in the 902-928 MHz ISM band.
AES-256 Encrypted Communication
Hardware-accelerated encryption for secure, authenticated communication.
Solid-State Switching
No moving parts. Built for industrial switching applications.
Synchronous Communication
Reliable message delivery with PLL-synchronized timing.
Designed for Integration
Test automation systems with VISA/SCPI, API, and Serial communication.
Visibility
Monitor health and status via the optional desktop host service. Deploy the self-hostable WiEPOut Overseer to view all monitored devices on a single web page.
Applications
Industrial Control
Reliable remote switching for manufacturing equipment
Test & Measurement
Automated test systems with REST API and VISA/SCPI interfaces
Building Systems
Equipment control and monitoring over extended range
Large Facilities
Remote control across extended distances
Integration Options
Desktop Service
Multi-platform (Linux, Windows, macOS) service with REST API, WebSocket telemetry, and VISA/SCPI interfaces.
UART Protocol
Serial protocol for direct device control at 115200 8N1.
VISA/SCPI
Native integration with NI-MAX, LabVIEW, and VISA-compatible test equipment via TCP socket on port 5025.
Technical Specifications
Radio Parameters
- Frequency:
- 915 MHz (902-928 MHz ISM band)
- Bandwidth:
- 125/250/500 kHz configurable
- Spreading Factor:
- 7-12
- TX Power:
- 14-22 dBm
Configurable radio profiles from fast response to extended range
Security
- Key Exchange:
- ECDH P-256
- Authentication:
- AES-256-CMAC
Hardware accelerated encryption engine
Relay Channels
- 2x opto-isolated "dry contact" channels
- Can be used as switch inputs or controlled outputs
- Stateful based on switch position
PinSync I/O
- 3x bidirectional logic level relay
- 3.3V to 48V user-supplied reference
- Per-line direction control
Power
- Input:
- 12V DC
- Backup:
- Internal 9V
Environmental
- Operating Temp:
- -20°C to 70°C
- Storage Temp:
- -40°C to 85°C
